Autocad - Why Are Lines Not Visible on Printout?Tutorial

Sometimes it happens that we prepare a file in AutoCAD for printing and after receiving the drawings from the print shop or on the generated file, it turns out that some elements were not printed at all. Below are a few settings to check if some lines are not visible.

Turn on all layers

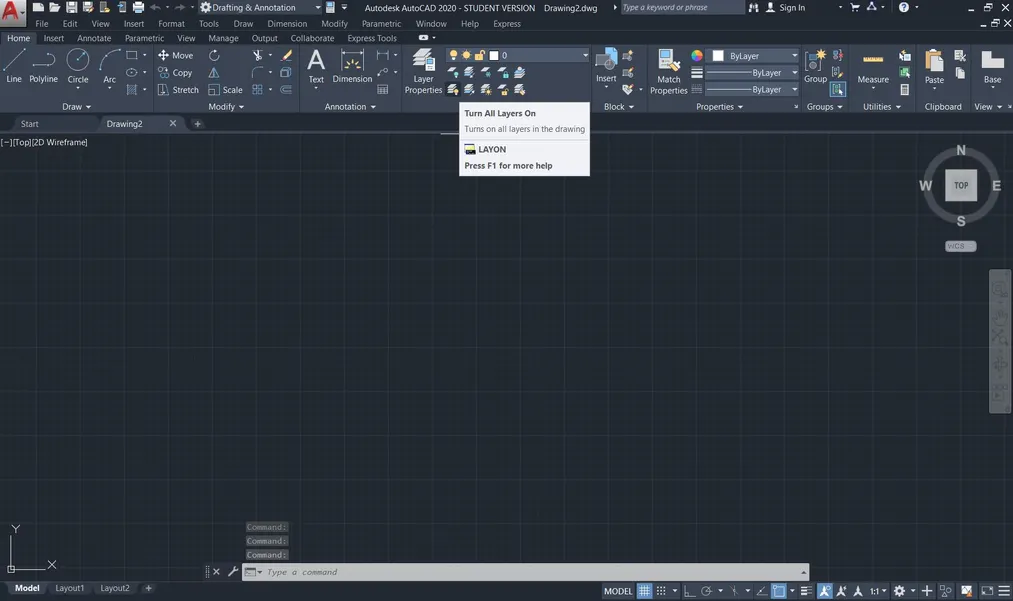

Autocad - Why lines are not visible in the printout? Guide, tutorial - 01

It may happen that under the pressure of a deadline, we accidentally turn off one of the layers. A very prosaic reason and very easy to identify.

Check layer settings and printing options

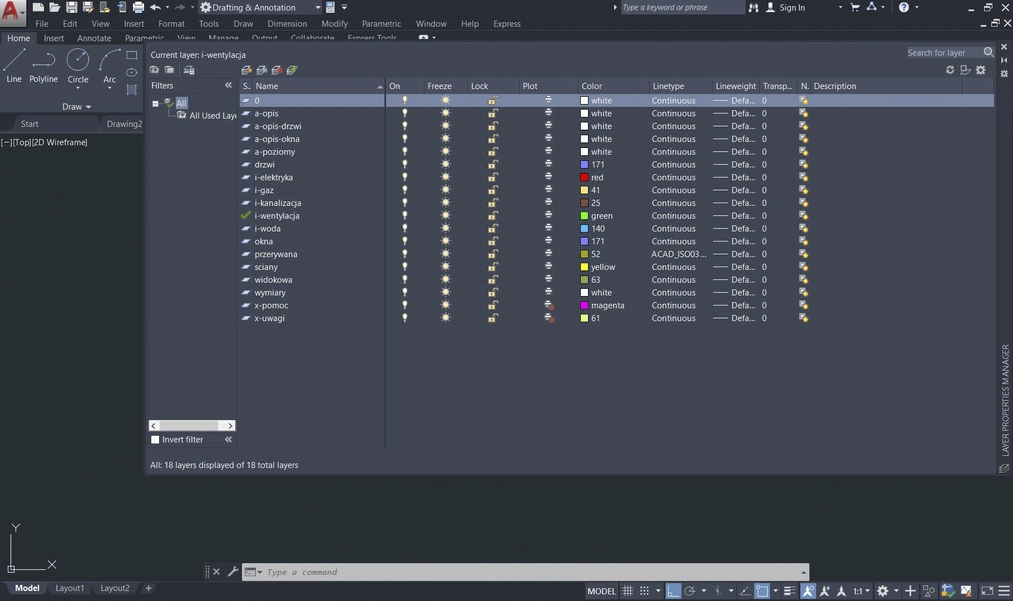

Autocad - Why lines are not visible in the printout? Guide, tutorial - 02

In the layer settings option panel (manager), when creating a layer, we disable the printing option. When drawing, there is no difference, the lines in the model are there, but they are not visible on the printout (the last two layers in the drawing will not be printed).

Check in the projection settings if the layer is not locked in the projection

If you are working on projections and the previous two possibilities failed, it may mean that the specified layer is only turned off in the projection. This is an additional icon, the third from the left, appearing only in the projection space, which turns off the layer in a specific layout, in the model the layer is normally visible.

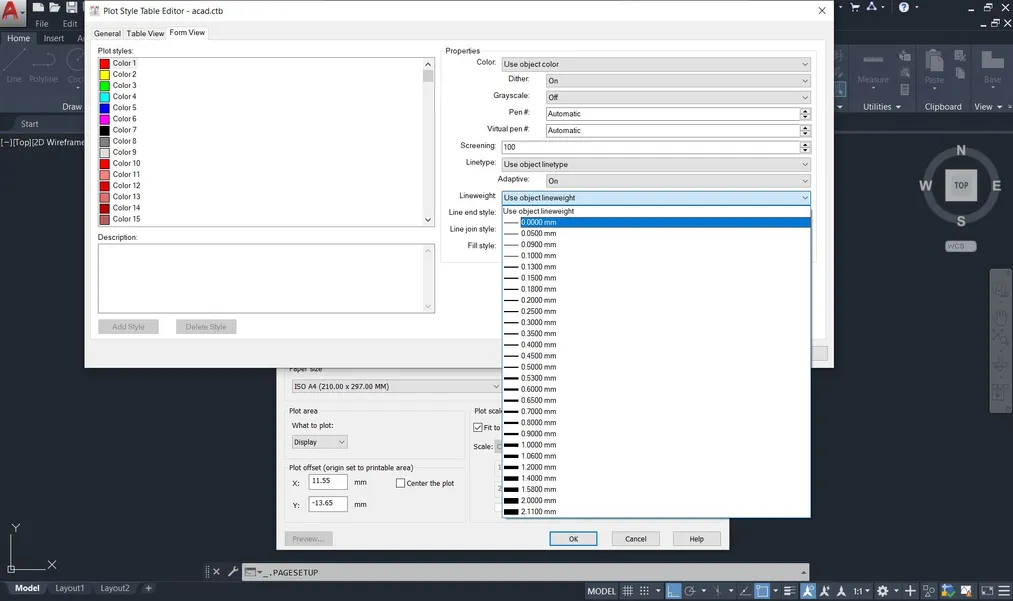

Verify the .ctb print style settings

When the previous steps fail, you can check the detailed settings of the .ctb file - the print style. Here, in the line color, a very light color, very low screening, or line thickness of 0.0000 mm can be selected. In this case, the lines are printed very light or very thin - almost invisible. It's worth checking all the options. Change the line color to a darker one, set the Screening to a higher value, or experiment with the line thickness.

After performing these actions, the problematic disappearing lines should appear on the printout.
